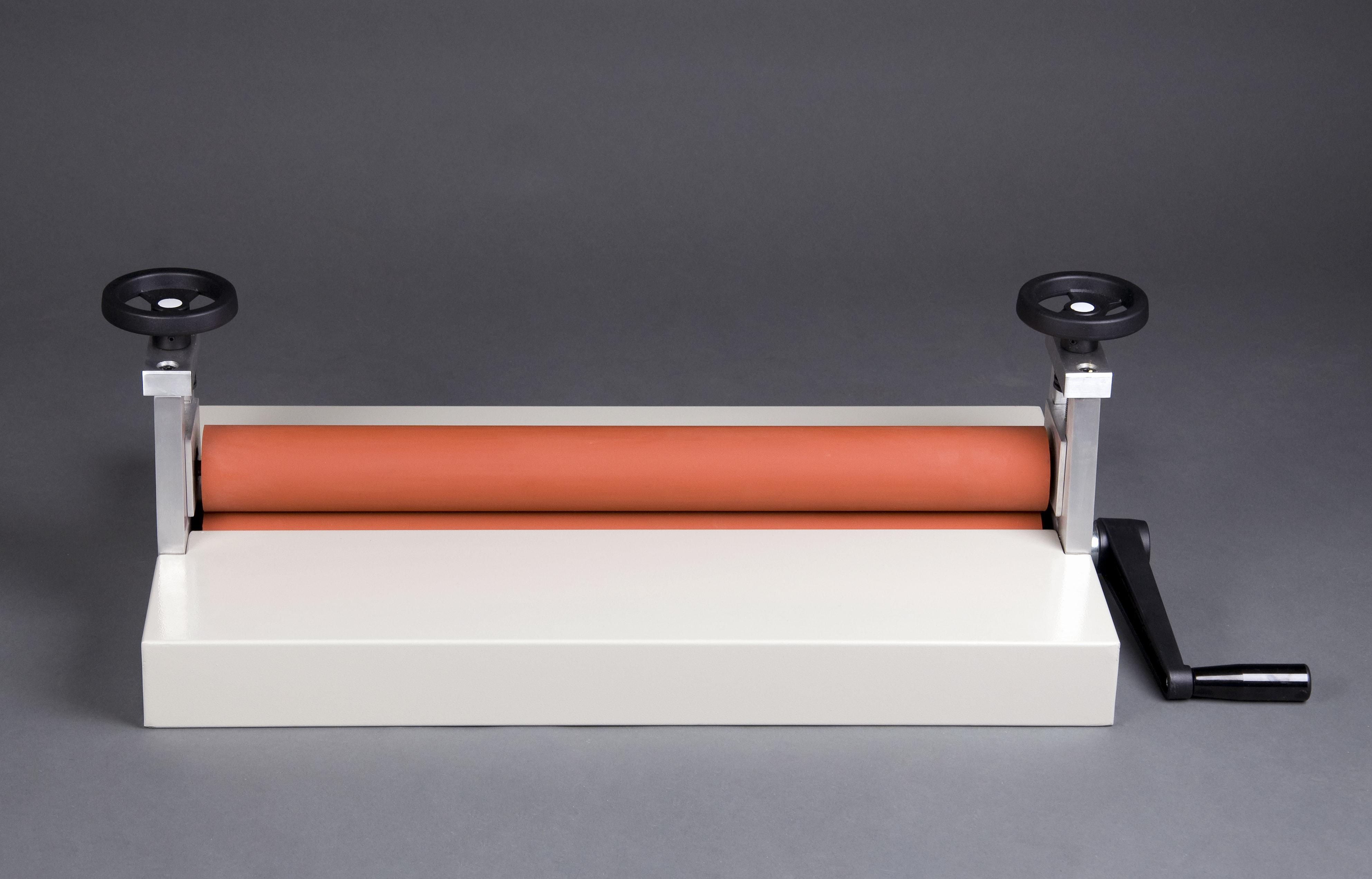

Manual Cold Laminating Machine - working width: 650mm

Ideal for laminating and mounting art prints, photos and posters,  including facemounting  prints behind acrylic glass.

The laminators are engineered to last and to ensure high quality results.

The machines incooperate  siliconised rollers.

The machines ZC1200 and ZC1650 have a  rolling stand  included with each machine.  In order to simplify some applications we offer a new option for these two machines: an  extra holder for laminating films  or other rolled

The machine ZC0650 is a table-top model without stand and roll holders.

Features:

- Chassis consists of a square tube frame

- Durable rubber rolls

- Manually adjustable pressure and gap opening

- Rolling Stand with the ZC1200 & ZC1650

- OPTION: Holder for Material

Technical Data:

ZC0650:

Working Width: 650mm
Max. Gap Opening: 30mm
D iameter of Rollers: 65mm
Weight: 18kg

ZC1200:

Working Width: 1200mm
Max. Gap Opening: 30mm
D iameter of Rollers: 100mm
Weight: 100kg

ZC1650:

Working Width: 1650mm
Max. Gap Opening: 15mm
Diameter of Rollers: 120mm
Weight: 170kg

The Maximum Gap Opening can be increased. Please contact us if you are interested.
